The Ultimate Guide to Buying LED Flood Lights

---

---

1. Understanding the Essentials of Modern LED Flood Lighting

1.1 What makes a true industrial-grade led flood light?

When evaluating high-performance outdoor lighting, structural integrity is absolutely critical. A true industrial-grade fixture consists of four interconnected core components. These parts are the heavy thermal housing, premium LED chips, a reliable driver, and precision optical lenses. Each single component must withstand continuous operation under very harsh environmental conditions. Poor engineering always leads to premature system failure and high repair costs.

Coydon Lighting utilizes a specialized aluminum housing combined with an advanced polycarbonate (PC) lens. This specific material combination balances superior heat dissipation with extreme impact resistance. Aluminum excels at drawing damaging heat away from the sensitive LED chips. This advanced thermal management actively prevents early lumen depreciation. It ensures that your industrial fixtures maintain stable brightness over years of hard use.

Furthermore, our engineered PC lenses offer exceptional weatherability. They do not crack under rapid temperature shifts or heavy physical impacts. This robust material combination protects internal components against yellowing and ultraviolet degradation. It delivers a highly dependable, maintenance-free industrial lighting solution for demanding global projects.

1.2 Lumens per watt (lm/w): the real metric of lighting efficiency

Let us clear up a huge mistake that many procurement managers still make. They tend to focus entirely on wattage when picking outdoor lights. But honestly, wattage only tells you how much power a fixture sucks from the grid. It does not measure actual brightness at all. The real metric to watch is luminous efficiency. This simply means how much raw light you get for every single watt you pay for.

At Coydon Lighting, our LED flood lights push out a solid 130 lumens per watt across the board. This high efficiency rating is a real benchmark for industrial projects. It guarantees maximum brightness without wasting expensive energy. Choosing low-efficiency alternatives from elsewhere usually means you end up with weak illumination and inflated electric bills.

This technical edge directly translates into huge savings on your long-term operational costs. For big facilities, running these high-efficiency lights slashes monthly power expenses right away. You can easily achieve a much faster return on investment for your factory floor or warehouse. It is the smartest way to upgrade your property while cutting down on overhead.

1.3 Color rendering index (cri) and cct: balancing safety and visibility

Choosing the right light involves more than raw power. You must also balance color temperature and clarity. Coydon Lighting offers flexible options including 3000K, 4500K, and 6000K setups. Warm 3000K light cuts through thick fog beautifully. Meanwhile, cool 6000K light works best for high-security industrial zones. We customize these choices to fit your specific yard layout.

Beyond color temperature, you need to look closely at the Color Rendering Index. Our flood lights feature a reliable CRI rating above 80. This high metric ensures outstanding visibility across dark outdoor workspaces. Cheap industrial lights often distort colors, which easily leads to dangerous workplace accidents.

High-CRI illumination allows workers to spot hazards quickly at night. It reveals true colors on safety signs, heavy machinery, and sports fields. This sharp visual clarity significantly reduces safety risks for busy nocturnal operations. Investing in CRI 80+ fixtures protects your crew and keeps your facility running smoothly.

---

2. The legacy system dilemma: why it’s time to upgrade

2.1 The hidden costs of halogen and metal halide systems

Let us face a frustrating reality about legacy lighting systems. Many factories still stick with old halogen or metal halide lamps. They think keeping these old fixtures saves money upfront. However, the hidden operational costs will quickly drain your facility maintenance budget. These legacy systems come with serious technical flaws that cost businesses thousands of dollars annually.

First, traditional bulbs suffer from incredibly fast lumen depreciation. A standard metal halide lamp can lose up to half its original brightness within just a few thousand hours. This means your workspace gets dimmer and less safe very quickly. Furthermore, these old lamps generate massive amounts of wasted heat. This extreme thermal output stresses internal components and damages the fixture housing over time.

The absolute worst part is the constant, expensive maintenance cycle. Halogen bulbs burn out frequently under normal working conditions. When a light fails on a high mast or factory ceiling, you cannot just grab a ladder. You must rent expensive scissor lifts and pay specialized technicians for dangerous high-altitude labor.

These constant operational interruptions slow down your daily warehouse or shipyard production. Paying for new bulbs and lift rentals month after month destroys any initial savings. Upgrading to reliable industrial solid-state technology is the only way to eliminate these repeating budget headaches permanently.

2.2 150w led vs. 1000w halogen: the math behind the evolution

Let us look at the actual numbers behind a serious lighting upgrade. Many project managers feel skeptical at first. They wonder how a smaller fixture replaces a giant bulb. Well, the raw physics of modern commercial lighting proves it easily. A Coydon Lighting 150W LED flood light perfectly replaces a legacy 1000W halogen fixture. Let us break down the efficiency math together.

Old 1000W halogen lamps waste most of their input energy generating intense heat. They only produce around 20 lumens per watt. That gives you roughly 20,000 lumens of fading light. Meanwhile, our advanced 150W industrial fixture runs at a highly efficient 130 lumens per watt. It delivers almost the exact same brightness while drawing a fraction of the power.

Performance Metric	Old Halogen Fixture	Coydon LED Flood Light
Power Consumption	1000 Watts	150 Watts
Luminous Efficiency	20 lm/W	130 lm/W
Total Lumen Output	20,000 Lumens	19,500 Lumens
Lifespan Rating	2,000 Hours	50,000 Hours
Energy Savings	0% (Baseline)	85% Savings

Now, consider the huge financial impact on your facility utility bills. Dropping from 1000W down to just 150W slashes your power consumption immediately. Look at it this way. This simple switch cuts your electricity costs by exactly 85 percent. Imagine running one hundred of these fixtures across a busy commercial shipyard or port terminal.

Over a single year, that 85 percent reduction saves tens of thousands of dollars. The math is crystal clear for any serious procurement manager. You stop burning cash on wasted heat right away. This smart upgrade pays for itself faster than almost any other facility improvement project.

---

3. Beam angle engineering: the secret to high-performance project design

3.1 Symmetrical vs. asymmetric beam angles: an overview

Understanding beam angles is vital when choosing heavy industrial lighting. Symmetrical optics spread light equally in all directions. This design works perfectly for open center areas like warehouses. However, asymmetric optics project light at a specific offset angle. This allows engineers to push light forward exactly where it is needed most.

In major engineering tenders, precise light control often decides who wins the contract. Clients hate wasted light spilling into neighboring properties. They also demand strict glare control to keep workers safe. Asymmetric beam angles direct light exclusively onto the target ground or billboard. This targeted distribution prevents blinding glare and heavy light pollution.

Using the wrong beam angle always results in dark spots and wasted energy. Experienced project bidders know that good lux distribution beats raw power every time. Offering a tailored asymmetric solution proves your technical capability. It shows you care about efficiency, safety, and smart project design.

3.2 Navigating coydon lighting’s kd-fln series options

Our signature KD-FLN series offers complete flexibility for diverse outdoor projects. This heavy-duty line spans multiple power levels from 50W up to 600W. To meet exact job requirements, it features five precise symmetrical beam angles. These factory options include 15, 30, 45, 60, and 90-degree distributions.

Selecting the correct angle determines how effectively you illuminate your target asset. Narrow 15 and 30-degree optics function like spotlights. They excel at striking high architectural facades and narrow corporate banners over long distances. The mid-range 45 and 60-degree options are excellent for medium-height billboard applications. They blend strong center brightness with balanced light spread.

For lower mounting heights, the wide 90-degree lens is your best choice. It provides uniform coverage for low-altitude container yards and logistics loading bays. This uniform distribution cuts down dangerous shadows across high-traffic industrial zones. The KD-FLN catalog allows project managers to select the perfect configuration for any site setup.

3.3 Mastering high-mast applications with the kd-flm series

Illuminating massive industrial landscapes requires extreme power and absolute beam control. The heavy-duty KD-FLM series answers this call with power options ranging from 750W up to 1250W. To deliver this massive light output accurately, our factory engineered five standard symmetrical lenses. These optics include ultra-narrow 10 and 25-degree options, plus balanced 45, 60, and 90-degree distributions.

The tight 10 and 25-degree spotlight beams act like sniper rifles for high-mast lighting poles. They punch bright light across enormous distances without spreading out into the night sky. This capability makes them the top choice for towering airport aprons and massive shipping terminal high-masts. They keep the target ground brightly lit while keeping the surrounding airspace safe and completely glare-free.

However, the real magic happens when you deploy our advanced asymmetric lenses. The KD-FLM series features highly competitive 65×25 and 130×30-degree polarized optics. These specialized designs push light forward at sharp angles rather than casting it in a simple circle. This unique distribution solves tough lighting challenges in complex industrial environments.

For large container ports and busy sports stadiums, these asymmetric angles provide uniform ground coverage. You can mount the fixtures at the edge of a property and throw light deep into the center. This design ensures that sports fields and container stacks receive even illumination with zero dark blind spots. It minimizes light spill into neighboring areas, helping projects easily pass strict environmental laws.

Choosing these precise optical setups saves you money by drastically reducing total fixture counts. You get better lux levels on the ground using far less power overall. This combination of raw wattage and optical precision makes the KD-FLM series a dominant force for global high-mast infrastructure.

---

4. Case study: outdoor tennis court illumination

The calculation report: high power LED flood lights 150 watt x 120 piece ( Project 02 )

4.1 Project background and client requirements

A commercial sports club owner reached out to us about his outdoor tennis court facility. The place was running eight old 1000W halogen lamps up on four high corner poles. Honestly, the whole setup was a total disaster. These ancient fixtures became a massive cash drain and a constant headache for the management team. The owner urgently needed a real upgrade to save his business.

The main problem was the terrible light quality during evening matches. The old halogen bulbs gave off a dim, yellow glow. Tracking a fast tennis ball at night was almost impossible for players. Even worse, the light distribution was incredibly uneven. It created dark blind spots on the baseline and blinding glare near the net. Angry club members kept complaining about eye strain and stopped booking the courts.

Maintenance was another absolute nightmare for them. These old bulbs burned out constantly under normal use. Every single time a lamp died, the club had to rent an expensive lift platform. They wasted thousands of dollars just on high-altitude labor fees. The client demanded a modern system to fix this mess. He wanted perfect visual clarity, uniform brightness, and zero recurring maintenance costs.

4.2 The coydon 150w led solution and dialux optimization

Our technical team stepped in quickly to fix this tennis court mess. We selected our signature 150W LED flood light, model KD-FLN-W150, for the project. The plan was simple. We swapped out those power-hungry 1000W halogen lamps one for one. But we did not just throw random lights onto the existing poles. We ran the whole project through Dialux simulation software first.

The software helped us map out the exact layout of the sports venue. To completely kill the glare problem, we avoided standard wide-angle lenses. Instead, we used a precise mix of targeted beam angles on each pole. We angled the optics to focus purely on the playing surface. This smart setup stops stray light from blinding players when they look up for a smash.

The Dialux optimization worked beautifully. It proved that our 150W fixtures could easily deliver much better lux levels than the old 1000W system. We achieved perfectly uniform light across the entire court court baseline. No more dark zones, no more complaints from players, and zero light spilling into neighboring yards. We delivered professional-grade sports lighting while using a fraction of the power.

4.3 Proven results: energy savings and lighting quality improvements

The final results on the tennis courts were absolutely stunning. After turning on our KD-FLN-W150 fixtures, the facility energy consumption plummeted by exactly 85 percent. The club owner saw his monthly power bill drop instantly. This massive reduction means the entire upgrade project will pay for itself in less than a year. It is a massive financial win for the business.

At the same time, the lighting quality on the ground completely transformed. Both the average lux levels and the overall uniformity doubled across the playing surface. The court now easily meets strict professional tournament standards. Players enjoy crisp, daylight-like visibility with zero annoying glare or dark blind spots.

The club members love the new setup, and evening court bookings have reached an all-time high. This real-world project proves that cutting power consumption does not mean sacrificing performance. Upgrading to our specialized industrial LED systems eliminates maintenance headaches and boosts your bottom line simultaneously. It is the ultimate upgrade for any commercial facility looking to maximize efficiency and profits.

---

5. Crucial technical factors every buyer must evaluate

5.1 IP rating and outdoor durability: demanding ip66 protection

Outdoor industrial lights must endure some of the harshest environments on earth. Standard commercial fixtures often fail quickly when hit by heavy downpours or thick coastal salt fog. That is why demanding true IP66 protection is absolutely non-negotiable for serious projects. This rating guarantees that your lighting investment stays completely safe from severe weather damage year after year.

Let us look at what IP66 actually means for your facility. The first digit means the fixture is totally dust-tight against howling sandstorms. The second digit proves the housing withstands powerful, high-pressure water jets from any direction. Rain, mud, and corrosive moisture simply cannot penetrate the heavy-duty seals. It keeps the sensitive internal electronics dry and running smoothly.

At Coydon Lighting, we build our flood lights to survive these brutal conditions easily. This extreme durability ensures stable operation for over five long years without any performance drops. You do not have to worry about short circuits or early lamp failures during wet seasons. Choosing certified IP66 hardware protects your job site, slashes replacement costs, and gives you total peace of mind.

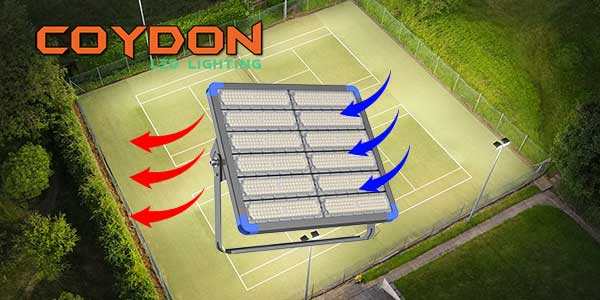

5.2 Thermal management: how housing design affords a 5-year warranty

From a factory manufacturing perspective, managing heat is our absolute top priority. LED chips generate intense heat concentrated in a tiny space. If that thermal energy trapped inside trapped inside the fixture, the light will degrade fast. That is why Coydon uses a heavy-duty, die-cast aluminum housing design for all our flood lights. Aluminum offers incredible thermal conductivity to draw heat away from vital electronics.

Our specialized housing features deep, integrated cooling fins across the back. This clever structural shape dramatically expands the total surface area exposed to the air. It creates a natural convection air current that pulls heat away constantly. By keeping the internal junction temperature low, we protect the LED chips from severe lumen depreciation. The brightness stays sharp and stable over a long operational lifespan.

Because we master this thermal engineering, we do not guess about product reliability. We know our fixtures will last under brutal working conditions. This manufacturing confidence allows us to proudly offer a full five-year warranty to our global customers. We stand by our craftsmanship because our heat-dissipating structures prevent early failures completely.

5.3 Voltage range and compliance for international projects

Managing global engineering projects can be a real headache. One size definitely does not fit all here. Different countries run on completely different power grids and voltage setups. On top of that, remote industrial sites often suffer from terrible power stability. To fix this, our flood lights feature a wide AC 85V to 277V input range. This flexibility keeps your project safe anywhere.

Local grid power can be wild in developing regions. You often face sudden voltage drops and nasty power spikes. For example, a US site might use 120V or 277V lines. A factory in Vietnam or Germany will use 220V or 240V grids. Our smart internal drivers handle these changes automatically. You do not need to buy expensive, heavy transformers.

Heavy industrial machinery starting up creates massive electrical interference on site. Our advanced engineering absorbs these grid shocks smoothly. The lights will not flicker or burn out early when the power fluctuates. Your critical shipyard or mining zone stays brightly lit without any annoying downtime. It is that simple.

This plug-and-play capability shows our deep experience with global supply chains. We know the tight project deadlines and compliance rules you face daily. By shipping these versatile wide-voltage fixtures, we kill local compatibility risks before they start. We make international deployment fast, safe, and completely hassle-free for your team.

---

6. Eliminating procurement risks with professional dialux simulation

6.1 What is a dialux simulation report and why do you need it?

Buying heavy industrial lights blindly is a huge gamble. Many project managers just guess the wattage they need. This careless approach usually leads to disaster on the job site. You often end up with pitch-dark areas or blinding glare that risks worker safety. Fixing these mistakes after installation ruins your budget and wastes precious time.

A Dialux simulation report completely eliminates this guesswork before you spend a single dollar. Think of it as a data-driven trial run for your project. This professional software creates a precise 3D digital model of your actual facility. It calculates exactly how light travels across your specific space. You get a clear preview of the results before ordering hardware.

The software maps out crucial performance metrics with absolute precision. It shows you the exact average lux levels across your target ground. It also tracks the light uniformity, known as the U0 value, to prevent dark spots. You can see how different beam angles change the layout immediately. It catches potential problems while they are still easy to fix on a screen.

For serious engineering tenders, this report is your most powerful weapon. It proves to your clients that your lighting design actually works. You are not just selling fixtures; you are delivering a guaranteed visual solution. This technical proof builds massive trust, protects your margins, and helps you win competitive contracts easily.

6.2 How coydon lighting customizes lighting plans for your projects

Many factories just want to dump standard boxes of lights onto your lap. They do not care if the layout actually fits your specific site requirements. Coydon Lighting does things completely differently. We offer professional, tailored Dialux simulation reports completely free of charge for your international projects. We protect your budget by engineering the setup correctly from day one.

Our engineering team handles every type of heavy industrial landscape imaginable. We routinely design layout plans for massive logistics parks, soaring high-mast roadways, and commercial sports tennis courts. No project is too complex or too large for our software systems. We focus heavily on maximizing lux levels while keeping total fixture counts low.

Getting your custom lighting plan started is incredibly simple and hassle-free. You only need to send us your basic facility dimensions or site layout drawings. Tell us your mounting heights and any specific brightness targets you need to hit. Our experienced in-house engineers will take over the heavy lifting immediately.

We understand that timing can make or break a major construction bid. Therefore, our factory guarantees a rapid turnaround time on all standard simulations. We deliver your complete, scientific light distribution scheme within 24 to 48 hours. You get clear 3D renderings and precise data sheets ready to show your clients.

This free technical service gives you a massive competitive advantage in your local market. It changes you from a simple buyer into a smart project planner. You can confidently show project stakeholders exactly where every dollar goes. Partnering with Coydon means getting elite factory support that helps you win more contracts easily.

---

7. Conclusion: Partner with Coydon Lighting for Your Next Project

Keeping old, power-hungry lighting systems active is simply costing you too much money. Every single day you delay is another day of wasted facility profits. Our advanced engineering delivers a highly efficient 130 lumens per watt output. This massive leap in technology allows a single 150W fixture to easily replace an old 1000W halogen lamp. You get beautiful, crisp light while slashing your utility costs by 85 percent immediately.

Upgrading your job site with Coydon Lighting eliminates your operational headaches completely. You can finally forget about dim yellow courts, dark blind spots, and expensive weekly maintenance bills. Our rugged, IP66-rated aluminum housings protect your investment across years of heavy rain and harsh coastal storms. We stand behind this heavy-duty manufacturing quality by giving global clients a full five-year warranty.

Do not leave your upcoming project results up to simple guesswork. Let our dedicated factory engineers design the perfect layout configuration for you without charging a penny. We will build a detailed 3D model of your space using professional simulation software. This data-driven proof ensures you pass environmental audits and win competitive local engineering tenders easily.

Taking the next step to boost your facility efficiency is incredibly fast and simple. Our team is standing by to deliver your scientific light scheme within 24 to 48 hours. Turn your lighting problems into a massive financial win for your business today.

Click the “Inquiry Now” button, share your project dimensions with us, and get your free customized Dialux simulation report today!
